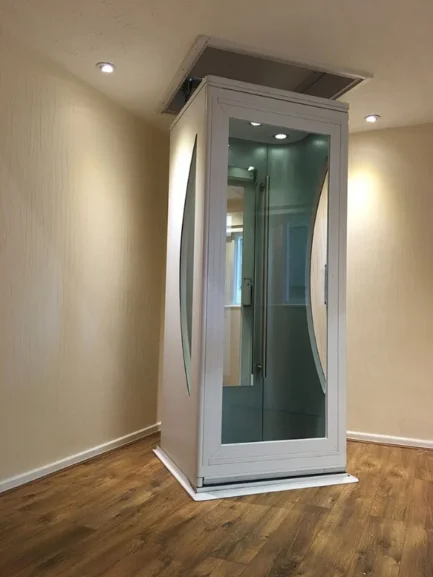

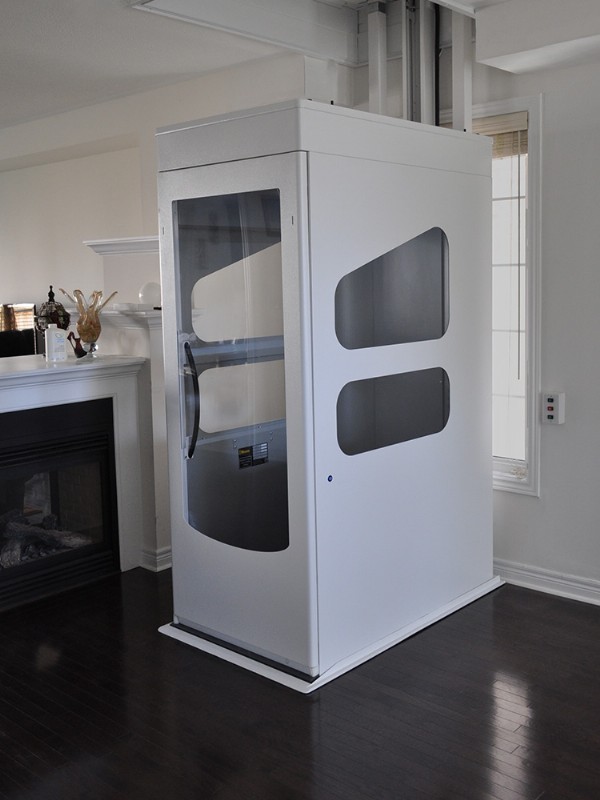

Wessex Through-Floor Home Elevator
Sleek, stylish Wessex residential elevators are perfect for the two-story home where space is a concern. They can be installed virtually anywhere, while leaving your staircase free of obstruction and providing more usable space in your home. There are no footings or foundations required and it can be installed for a fraction of the cost of a traditional home elevator
Description
Features
- Quick installation
- Travels up to 11.6 feet
- Free-standing design does not require a load bearing wall or a hoistway, allowing for a wider choice of elevator locations in the home and helping you save money on construction costs
- Bright LED, timer-controlled lights are activated automatically by the operation of the elevator and shut off after a pre-set time
- Emergency back-up systems operate the door, light and alarm, and lower the elevator to the floor in case of a power failure.
- Audible two-tone alarm with battery back-up is fitted as standard for use in an emergency
- Elevator safety edges feature will automatically stop the elevator if it is touched or obstructed.
- Car door and elevator controls can be left or right handed to accommodate the user
- Sensors built in platform to prevent operation if obstructed
- Wireless landing controls can be installed on left or right side of elevator cab
- Wall filler-panels are available to install behind the elevator track, if the elevator is located far from a wall
Tech Specs
| Specifications | Small | Standard | Large | Extra-Large |
|---|---|---|---|---|
| Models | VE 15, VE 25 | VE 31, VE 51 | VE 36, VE 56 | VE 38, VE 58 |
| Dimensions (W x L) | 30 ½” x 23″ | 28 9/16″ x 45 ½” | 30 ½” x 47 7/16″ | 34 13/16″ x 54 ⅛” |
| Weight capacity | 550 lbs | 550 lbs | 550 lbs | 550 lbs |
| Hand rails | Standard | Available | Available | Available |
| Car-mounted fold-down seat option | Available | Available | Available | Available |
| Power car door option | Not Available | Available | Available | Available |
Options
- Add an interior seat
- Customizable interior color options
- Upgradable interior lighting
- Key switch call stations
- Remote control
- Power operated door
- In-car telephone
