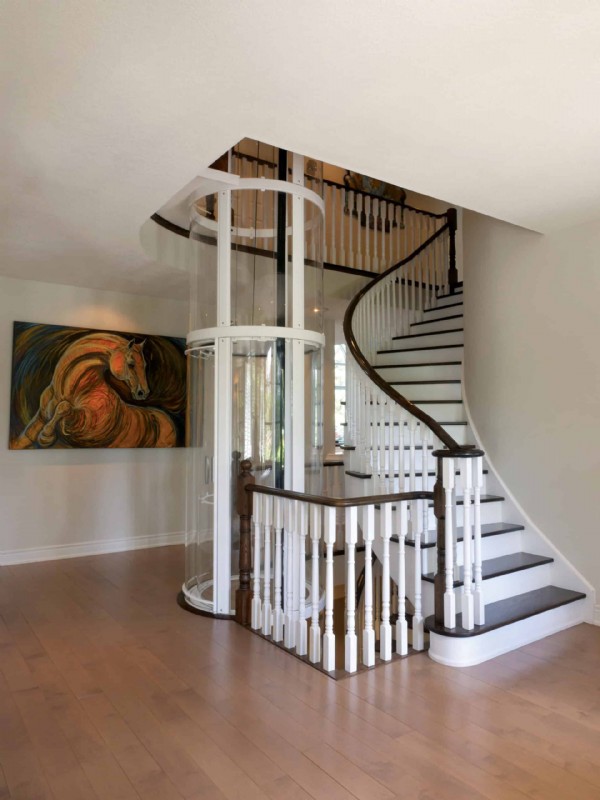

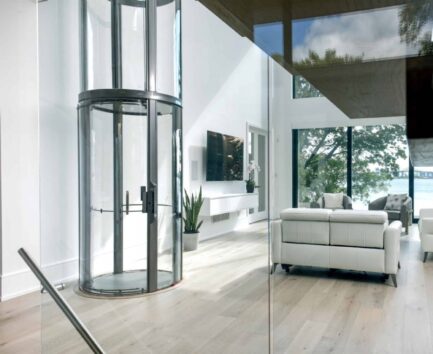

Savaria Vuelift Mini Home Elevator
Make your home stunningly beautiful and space more livable. Savaria’s Vuelift Mini glass elevator combines stunning aesthetics with the convivence of reaching all floor levels of your home with the push of a button. It has a small footprint, making it an easy addition for new construction and flexible for installation into an existing home.
Description
Features
- All Inclusive
- Free-standing design – no wall is required for installation, and no hoistway construction is needed
- Available in silica glass or clear acrylic with matching hoistway
- manual sliding car gate and manual landing doors
- Illuminated push-button hall call stations and cab operating panel
- Integrated touch-pad phone
- Automatic on/off LED cab lighting and ventilation fan
- Black powder-coated framing
- Numerous safety features so that you should never have to worry about most safety risks, even during a power failure
- Emergency stop switch
- Safety brakes
- Emergency battery back-up for cab lowering & lighting
- Manual emergency lowering
- Overspeed governor
- Multiple Models Available
Options
- Up to six stops for a maximum travel of 50 ft (15.24 m)
- Frame colors including white, silver or custom powder-coat
- Straight-through cab configuration (2 doors)
Specifications
| Vuelift Mini Specifications | |
|---|---|
| Code Compliance | Meets or exceeds ASME A17.1 / CSA B44 requirements |
| Footprint | 49.75″ diameter |
| Capacity | 500 lb. |
| Overhead Clearance | 96″ |
| Cab Dimensions | Interior Height: 78″, Floor Area: 8.25 sq ft |
| Max. Travel | 50 ft. |
| Travel Speed | 30 ft./min |
| Power Supply | 30A, 230V, single-phase, 50/60 Hz |
| Pit Depth | 3″ |
| Drive | Winding drum, with .7 HP motor |
| Configurations | Type 1 (1 cab door), optional Type 2 (2 cab doors) |
| Colors | Black (standard), optional: white, silver or custom powder coat |
Photo Credit: Savaria
Improve your mobility with a Vuelift Mini Glass Elevator.
Request a free home assessment today!
