Features

• High-efficiency precision hydraulic drive system: for a smooth and quiet ride.
• Magnetic floor selection: Automatic leveling at each landing to ensure the elevator meets the floor precisely.
• Submersible pump and motor: For whisper-quiet operation.
• Variable speed pressure valve: Gradual acceleration and deceleration for gentle stops and starts.
• Standard Finishes: MDF with or without finish, melamine in a choice of finishes, stainless steel, clear or bronze anodized aluminum cab operating panel and hall call stations, plywood floor.
• Multiple Safety Features: Battery operated (UPS) emergency lowering and lighting, manual emergency lowering button, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator lights on hall station, slack rope safety system.
• Other Standard Features: Fully automatic operation, modular rail construction for easy construction, automatic cab on/off interior lighting, digital display in car operating panel, white ceiling with 4 halogen pot lights, melamine interior in choice of colors.
• Warranty: See details from Savaria here

Tech Specs

Applications: Residential, indoors
Standard capacity: 750 lb (340 kg), 950 lb (431kg), 1000 lb (453 kg)
Maximum travel distance: 50′ (15.24 m)
Nominal speed: 36 ft/min (0.18 m/s)
Drive/motor: 1:2 cable hydraulic drive, 5 hp
Minimum pit: 8″ (203 mm)
Minimum overhead clearance: 92″ (2337 mm).
Power supply: 208 volts, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 30 amps

The Infinity may also be ordered in an HD (heavy duty) configuration with the same specifications as above, with the following differences:
Optional capacity: 1400 lb (635 kg)
Drive/motor: 1:2 cable hydraulic drive, 5 hp submersed
Minimum pit: 12″ (305 mm)
Minimum overhead clearance: 92″ (2337 mm) for standard 80″ cab, 96″ (2438 mm) for 84″ cab, 108″ (2743 mm) for 96″ cab

Options

Your local Lifeway Mobility can show you the many ways to make your Infinity home elevator the perfect complement to your home. A variety of finishes and fixtures are available to suit virtually any décor.

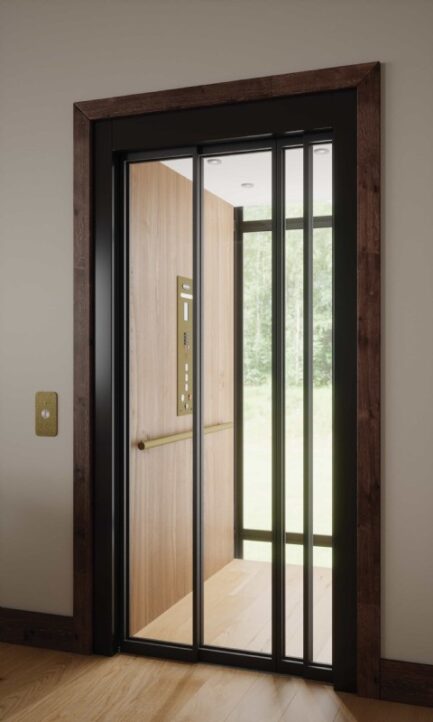

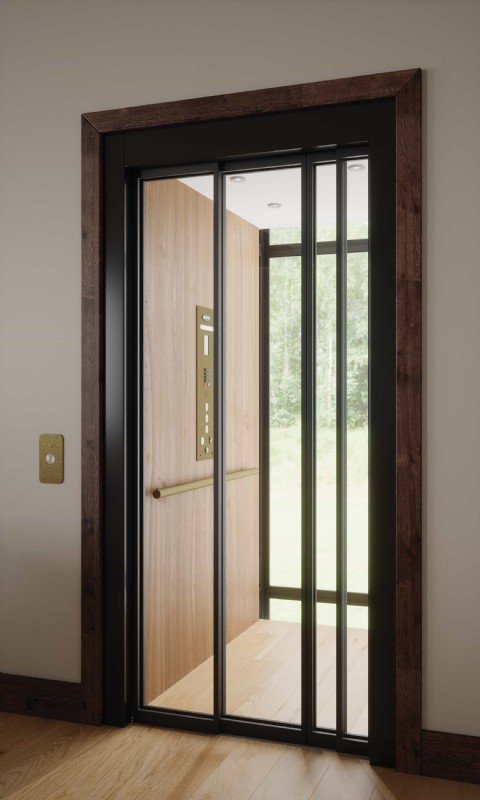

• Doors and Gate Options:
  • Auto slim doors (84″ cab height required)
  • Bi-folding doors
  • Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts
  • Visi-fold gate anodized bronze with bronze acrylic
  • Clear-fold gate in clear anodized aluminum with clear acrylic inserts
  • Power gate and door operators
• Optional Fixture Finishes: Brass #4 finish (handrail, cab operating panel, hall call station).  Hall call stations available in rectangular or oval design.

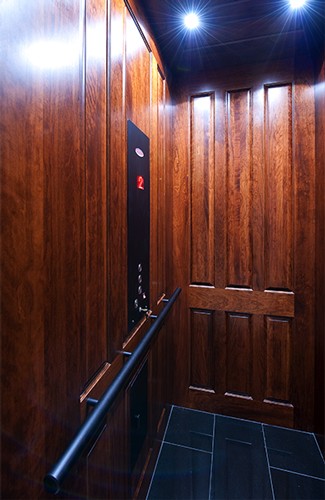

• Optional Cab Finishes: Recessed hardwood, raised hardwood, finished or unfinished veneer, luxury MDF or routed white MDF
• Other Options: Up to 6 stops, telephone cabinet, alpha-numeric button marking, two-exit opening, keyed hall call station, interlocks.

Cab Sizes

• • W36” x L48” x H80”
  • W36” x L54” x H80”
  • W36” x L60” x H80”
  • W40” x L54” x H80”
• Infinity HD: W48? x L60? x H80?
• Optional Height: 84? or 96?

Photo Credit: Savaria
