Features

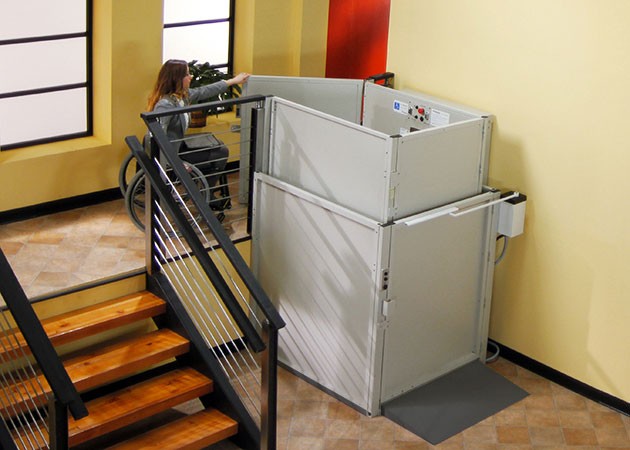

• The 3-gate (toe guard) lower enclosure system provides a full barrier at the lower landing with no access under the lift for maximum safety.
• Weather-protected controls on platform; emergency
• Automatic folding ramp (unenclosed unit only)
• Quiet, smooth ride
• Keyed, constant pressure controls on platform with emergency stop switch and audio/visual alarm
• Bottom platform safety panel
• Top & bottom limit switches
• Top and bottom final limit safety switch
• Fixed Ramp (enclosed and 3-gate)
• Gold Warranty: Two years on major components; one year on parts

Tech Specs

• Lifting capacity: 750 lb.
• Lift height: Provides access up to 14′
• Platform size: 36″ x 48″ non-skid platform
• Platform wall height: 42″ high, solid, side platform walls
• Power Systems – Models VPL-3353B & VPL-3375B ½ hp DC motor (includes 17AH batteries)
• Reliable, quiet ACME screw-driven DC motor with full-time battery operation offers access even in a power outage

Options

• Top landing gate includes call/send controls with key and mechanical or electrical interlock
• Cold Weather Package, recommended if operating in temps below -20º F
• Several platform sizes and configurations
• Push button or Paddle Controls on the platform
• Push button or Paddle Landing Controls
• Flush mount doors with interlock
• Power assisted door/gate operator
• ADA compliant telephone kit
• Plexiglass panels: clear or bronze
• Secondary grab rail
